1 1 1 3 3 Pentafluoropropane R245fa Rau ORC System

ORC System yog cov ntawv luv ntawm Organic Rankine Cycle system.nws yog lub zog rov qab ua haujlwm tau zoo raws li qhov qis- qhov kub thiab txias qhov hluav taws xob tsim hluav taws xob. Nws lub hauv paus yog siv qis- qib thermal zog (xws li cov khoom siv hluav taws xob pov tseg, hluav taws xob hluav taws xob los yog hnub ci zog) los tsav cov txheej txheem tsim hluav taws xob. Raws li cov kua dej ua haujlwm tseem ceeb hauv ORC qhov system, 1 1 1 3 3 pentafluoropropane tau pom tias muaj peev xwm siv tau zoo hauv daim teb no vim nws cov khoom siv hluav taws xob zoo heev thiab kev tiv thaiv ib puag ncig.



1 1 1 3 3 pentafluoropropanekuj paub tias yog R245FA, HFC 245FA, 245FA, nws yog thib peb - tiam cov tub yees sib xyaw.

Hauv ORC system, R245FA refrigerant yog siv los ua cov kua dej ua haujlwm kom ua tiav lub zog hloov pauv los ntawm cov kauj ruam hauv qab no:

Evaporation theem:Tsawg-kub qhov chaw kub (xws li cov khoom siv hluav taws xob los yog cov dej kub hauv av) hloov cov cua sov mus rau R245FA los ntawm cov evaporator, hloov nws los ntawm cov kua mus rau siab - siab zog.

Expansion zog tsim:Siab -Lub zog siab nkag mus rau lub turbine, tsav lub turbine tig thiab tsav lub tshuab hluav taws xob los tsim hluav taws xob.

Condensation theem:Tom qab cov chav ua haujlwm hauv lub turbine, nws nkag mus rau hauv lub condenser kom txias thiab tig rov qab rau hauv cov kua.

Recycling:Liquid R245FA yog nias los ntawm lub twj tso kua mis thiab rov- nkag mus rau lub evaporator kom pib lub voj voog tshiab.

245FA tus yam ntxwv tiv thaiv ib puag ncig ua rau nws yog qhov kev xaiv zoo tshaj plaws rau ORC systems:

Zero ozone depletion peev xwm (ODP=0):R245FA tsis muaj kev puas tsuaj rau txheej txheej ozone thiab ua raws li kev cai thoob ntiaj teb ib puag ncig.

Tsawg ntiaj teb ua kom muaj peev xwm ua kom sov (GWP=1030):Piv nrog rau cov tub yees ib txwm muaj, R245FA muaj kev cuam tshuam tsawg dua rau kev hloov pauv huab cua.

Txhawb ntsuab zog transformation:Los ntawm kev siv qis- qib thermal zog, R245FA pab cov tuam txhab txo qis carbon emissions thiab txhawb kev txhim kho kom ruaj khov.

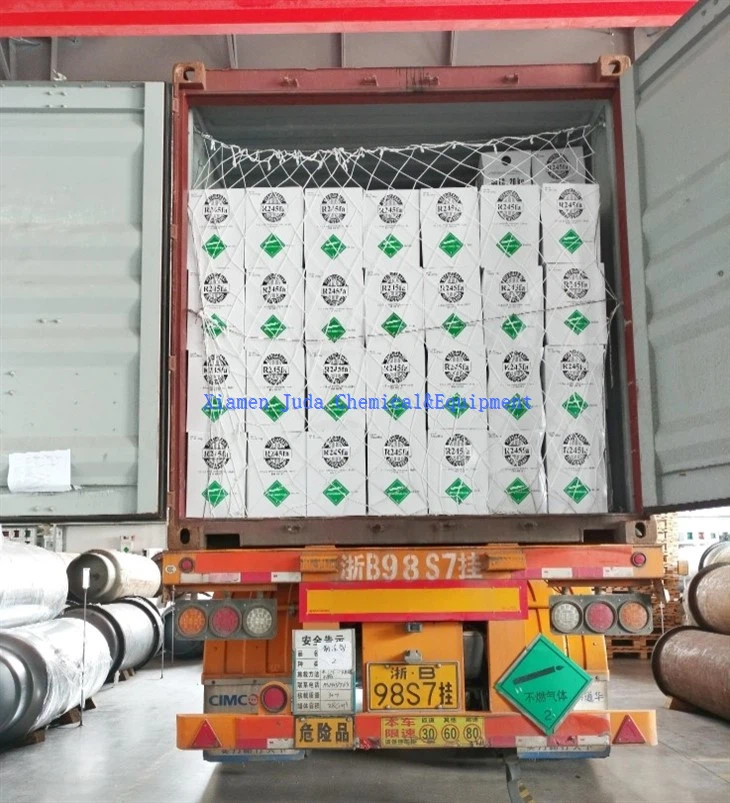

Common packing:

Tsis yog- refillable lub tog raj kheej: 10kg, 20kg;

Lub tog raj kheej rov qab: 45kg, 800kg, 1000kg, ISO-TANK.

Xiamen Juda yog ib lub chaw muab kev pabcuam tub yees hauv Suav teb, muab ntau yam khoom xws li Refrigerant Gas, Medical Aerosol Propellant, Cleaning Agent, Fire Extinguishing Agent, Welding Gas, Cooling Fluid and Fluoropolymer. Founded hauv 1988 los ntawm ib tug ntawm Tuam Tshoj cov tshuaj raug pioneers, Juhua Group Corporation, Xiamen Juda tau mob siab rau exporting fluorinated chemicals txij thaum 2004. Peb pab neeg tau cog lus rau kev ua tau zoo thiab muab sab saum toj -notch kev daws teeb meem kom tau raws li cov kev xav tau ntawm peb cov neeg muas zaub. Peb txaus siab rau peb lub koob npe nrov ntev rau kev ua tau zoo thiab kev ntseeg siab. Nrog Xiamen Juda, koj tuaj yeem ntseeg tau tias koj tau txais qhov zoo tshaj plaws hauv kev lag luam.

Txais tos tiv tauj peb!
